[머신러닝] 회귀(Regression)

쿠뱃봉 2023. 1. 23. 14:32

01 데이터셋 불러오기

# 기본 라이브러리
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns

# skleran 데이터셋에서 보스턴 주택 데이터셋 로딩
from sklearn import datasets
housing = datasets.load_boston()

# 딕셔너리 형태이므로, key 값을 확인
housing.keys()

# 판다스 데이터프레임으로 변환
data = pd.DataFrame(housing['data'], columns=housing['feature_names'])
target = pd.DataFrame(housing['target'], columns=['Target'])
# 데이터셋 크기
print(data.shape)
print(target.shape)
print(data.head())
print(housing['feature_names'])
print(target.head())

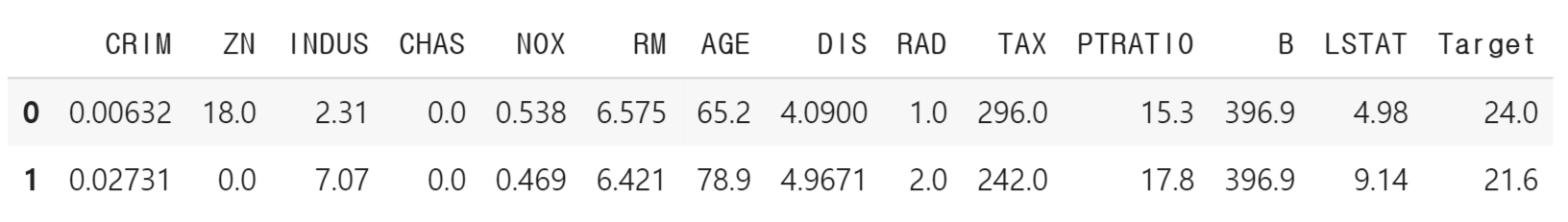

# 데이터프레임 결합하기
df = pd.concat([data, target], axis=1)
df.head(2)

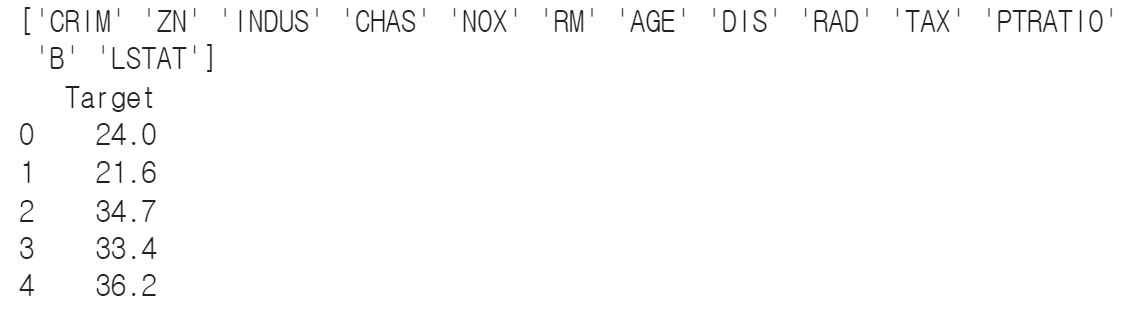

print(housing['feature_names']) / print(target.head())

02 데이터 탐색 (EDA)

# 상관계수 행렬
df_corr = df.corr()

# 히트맵 그리기
plt.figure(figsize=(10, 10))
sns.set(font_scale=0.8)
sns.heatmap(df_corr, annot=True, cbar=False);
plt.show()

# 변수 간의 상관관계 분석 - Target 변수와 상관관계가 높은 순서대로 정리
corr_order = df_corr.loc[:'LSTAT', 'Target'].abs().sort_values(ascending=False)
corr_order

# Target 변수와 상관관계가 높은 4개 변수를 추출
plot_cols = ['Target', 'LSTAT', 'RM', 'PTRATIO', 'INDUS']
plot_df = df.loc[:, plot_cols]
plot_df.head()

# regplot으로 선형회귀선 표시
plt.figure(figsize=(10,10))
print(plot_cols[1:])
for idx, col in enumerate(plot_cols[1:]):
    print('idx=',idx,'col=',col)
    ax1 = plt.subplot(2, 2, idx+1)
    #subplot은 축 공유
    sns.regplot(x=col, y=plot_cols[0], data=plot_df, ax=ax1)
    #regplot은 scatter와 line을 함께 볼 수 있는 데이터 시각화 방법
plt.show()

# Target 데이터의 분포
sns.displot( x='Target', kind='hist', data=df)
plt.show()

03 데이터 전처리

피처 스케일링

# 사이킷런 MinMaxScaler 적용
from sklearn.preprocessing import MinMaxScaler
scaler=MinMaxScaler()

df_scaled = df.iloc[:, :-1]
scaler.fit(df_scaled)
df_scaled = scaler.transform(df_scaled)

# 스케일링 변환된 값을 데이터프레임에 반영
df.iloc[:, :-1] = df_scaled[:, :]
df.head()

마지막 열인 'Targert' 만 제외하고 값을 0-1로 스케일링하는 MinMaxScaler 적용

학습용-테스트 데이터셋 분리하기

# 학습 - 테스트 데이터셋 분할
from sklearn.model_selection import train_test_split
X_data = df.loc[:, ['LSTAT', 'RM']]
y_data = df.loc[:, 'Target']
X_train, X_test, y_train, y_test = train_test_split(X_data, y_data,
                                                    test_size=0.2,
                                                    shuffle=True,
                                                    random_state=12)
print(X_train.shape, y_train.shape)
print(X_test.shape, y_test.shape)

04 Baseline 모델 - 선형 회귀

# 선형 회귀 모형
from sklearn.linear_model import LinearRegression
lr = LinearRegression()
lr.fit(X_train, y_train)

print ("회귀계수(기울기): ", np.round(lr.coef_, 1))
print ("상수항(절편): ", np.round(lr.intercept_, 1))


# 예측
y_test_pred = lr.predict(X_test)

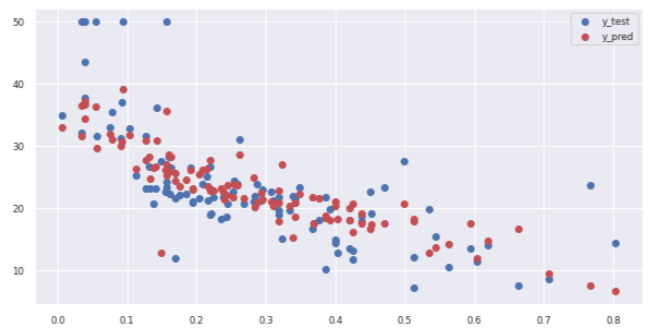

# 예측값, 실제값의 분포
plt.figure(figsize=(10, 5))
plt.scatter(X_test['LSTAT'], y_test, label='y_test')
plt.scatter(X_test['LSTAT'], y_test_pred, c='r', label='y_pred')
plt.legend(loc='best')
plt.show()


# 평가
from sklearn.metrics import mean_squared_error
y_train_pred = lr.predict(X_train)

train_mse = mean_squared_error(y_train, y_train_pred)
print("Train MSE: %.4f" % train_mse)

test_mse = mean_squared_error(y_test, y_test_pred)
print("Test MSE: %.4f" % test_mse)

05 교차 검증

# cross_val_score 함수
from sklearn.model_selection import cross_val_score
lr = LinearRegression()
mse_scores = -1*cross_val_score(lr, X_train, y_train, cv=5,
                                scoring='neg_mean_squared_error')
print("개별 Fold의 MSE: ", np.round(mse_scores, 4))
print("평균 MSE: %.4f" % np.mean(mse_scores))

06 L1/L2 규제

# 2차 다항식 변환
from sklearn.preprocessing import PolynomialFeatures
pf = PolynomialFeatures(degree=2)
X_train_poly = pf.fit_transform(X_train)
print("원본 학습 데이터셋: ", X_train.shape)
print("2차 다항식 변환 데이터셋: ", X_train_poly.shape)

# 15차 다항식 변환 데이터셋으로 선형 회귀 모형 학습
pf = PolynomialFeatures(degree=15)
X_train_poly = pf.fit_transform(X_train)

lr = LinearRegression()
lr.fit(X_train_poly, y_train)

# 테스트 데이터에 대한 예측 및 평가
y_train_pred = lr.predict(X_train_poly)
train_mse = mean_squared_error(y_train, y_train_pred)
print("Train MSE: %.4f" % train_mse)

X_test_poly = pf.fit_transform(X_test)
y_test_pred = lr.predict(X_test_poly)
test_mse = mean_squared_error(y_test, y_test_pred)
print("Test MSE: %.4f" % test_mse)

# 15차 다항식 변환 데이터셋으로 선형 회귀 모형 학습
pf = PolynomialFeatures(degree=15)
X_train_poly = pf.fit_transform(X_train)

lr = LinearRegression()
lr.fit(X_train_poly, y_train)

# 테스트 데이터에 대한 예측 및 평가
y_train_pred = lr.predict(X_train_poly)
train_mse = mean_squared_error(y_train, y_train_pred)
print("Train MSE: %.4f" % train_mse)

X_test_poly = pf.fit_transform(X_test)
y_test_pred = lr.predict(X_test_poly)
test_mse = mean_squared_error(y_test, y_test_pred)
print("Test MSE: %.4f" % test_mse)

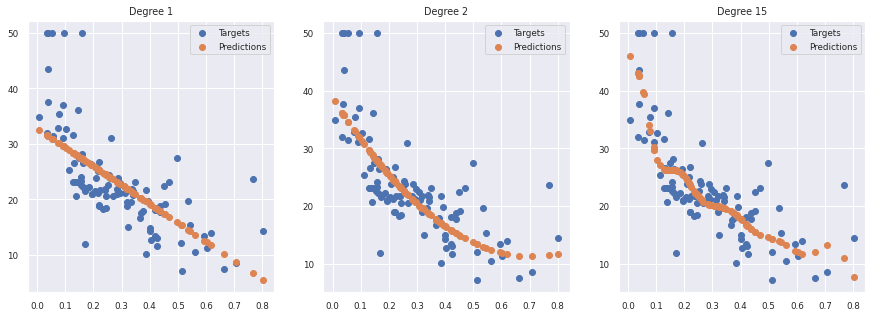

# 다항식 차수에 따른 모델 적합도 변화
plt.figure(figsize=(15,5))
for n, deg in enumerate([1, 2, 15]):
    ax1 = plt.subplot(1, 3, n+1)
    # degree별 다항 회귀 모형 적용
    pf = PolynomialFeatures(degree=deg)
    X_train_poly = pf.fit_transform(X_train.loc[:, ['LSTAT']])
    X_test_poly = pf.fit_transform(X_test.loc[:, ['LSTAT']])
    lr = LinearRegression()
    lr.fit(X_train_poly, y_train)
    y_test_pred = lr.predict(X_test_poly)
    # 실제값 분포
    plt.scatter(X_test.loc[:, ['LSTAT']], y_test, label='Targets')
    # 예측값 분포
    plt.scatter(X_test.loc[:, ['LSTAT']], y_test_pred, label='Predictions')
    # 제목 표시
    plt.title("Degree %d" % deg)
    # 범례 표시
    plt.legend()
plt.show()

선형 회귀 모델

# Ridge (L2 규제)
from sklearn.linear_model import Ridge
rdg = Ridge(alpha=2.5)
rdg.fit(X_train_poly, y_train)

y_train_pred = rdg.predict(X_train_poly)
train_mse = mean_squared_error(y_train, y_train_pred)
print("Train MSE: %.4f" % train_mse)
y_test_pred = rdg.predict(X_test_poly)
test_mse = mean_squared_error(y_test, y_test_pred)
print("Test MSE: %.4f" % test_mse)

# Lasso (L1 규제)
from sklearn.linear_model import Lasso
las = Lasso(alpha=0.05)
las.fit(X_train_poly, y_train)

y_train_pred = las.predict(X_train_poly)
train_mse = mean_squared_error(y_train, y_train_pred)
print("Train MSE: %.4f" % train_mse)
y_test_pred = las.predict(X_test_poly)
test_mse = mean_squared_error(y_test, y_test_pred)
print("Test MSE: %.4f" % test_mse)

# ElasticNet (L2/L1 규제)
from sklearn.linear_model import ElasticNet
ela = ElasticNet(alpha=0.01, l1_ratio=0.7)
ela.fit(X_train_poly, y_train)

y_train_pred = ela.predict(X_train_poly)
train_mse = mean_squared_error(y_train, y_train_pred)
print("Train MSE: %.4f" % train_mse)
y_test_pred = ela.predict(X_test_poly)
test_mse = mean_squared_error(y_test, y_test_pred)
print("Test MSE: %.4f" % test_mse)

07 트리 기반 모델 - 비선형 회귀

# 의사결정 나무
from sklearn.tree import DecisionTreeRegressor
dtr = DecisionTreeRegressor(max_depth=3, random_state=12)
dtr.fit(X_train, y_train)

y_train_pred = dtr.predict(X_train)
train_mse = mean_squared_error(y_train, y_train_pred)
print("Train MSE: %.4f" % train_mse)

y_test_pred = dtr.predict(X_test)
test_mse = mean_squared_error(y_test, y_test_pred)
print("Test MSE: %.4f" % test_mse)

# 랜덤 포레스트
from sklearn.ensemble import RandomForestRegressor
rfr = RandomForestRegressor(max_depth=3, random_state=12)
rfr.fit(X_train, y_train)

y_train_pred = rfr.predict(X_train)
train_mse = mean_squared_error(y_train, y_train_pred)
print("Train MSE: %.4f" % train_mse)

y_test_pred = rfr.predict(X_test)
test_mse = mean_squared_error(y_test, y_test_pred)
print("Test MSE: %.4f" % test_mse)

# XGBoost
from xgboost import XGBRegressor
xgbr = XGBRegressor(objective='reg:squarederror', max_depth=3, random_state=12)
xgbr.fit(X_train, y_train)

y_train_pred = xgbr.predict(X_train)
train_mse = mean_squared_error(y_train, y_train_pred)
print("Train MSE: %.4f" % train_mse)

y_test_pred = xgbr.predict(X_test)
test_mse = mean_squared_error(y_test, y_test_pred)
print("Test MSE: %.4f" % test_mse)
